Sunday, September 30, 2018

A San Diego jacket

I have just finished a San Diego jacket. It is a versatile pattern and so I'll probably make it again. I made the shirt almost two years ago when the Sewing Workshop (TSW) updated and reissued it. I blogged about it here.

From time to time, I have thought about making a jacket version. I have seen so many pretty San Diego jackets, in person and online. First there was this vintage version from the basement at the Sewing Workshop in Topeka KS. I think it must be a beefy silk tweed. Isn't it lovely?

The one below has been modified (I think) to make the fronts extend horizontally to create an extended collar with more vertical drape.

And the Sewing Workshop hosts a trip to France that often involves lovely versions of the San Diego jacket. I watch for those posts on Instagram. Always inspiring.

So this time I made the jacket version. My fabric is a linen-cotton blend from stash. I think it is a Robert Kaufman fabric probably purchased at a quilt shop. I like these fabrics that are cross-dyed, this one in burgundy and off-white. The addition of linen makes it right for a light-weight fall jacket.

It is not dramatic and the making is quite simple. There is a Y seam that forms the collar, but otherwise it is very easy. The pattern does have a 2-piece sleeve but I'm not sure why. It is strictly a design feature and that may be enough. It would certainly be an interesting place to insert some pretty piping. You can tell by looking at the two pieces that this is essentially a one-seam sleeve. The seam between them follows the straight-of-grain.

To me, this seemed a blank slate for pattern play. I started by reading about the anatomy of sleeves in Helen Armstrong's Patternmaking for Fashion Design. That gave me the basics of drafting a sleeve but it did not help me alter an existing sleeve. A quick search on Youtube led me to a tutorial by Christopher Sartorial. His video was clear and exactly what I wanted.

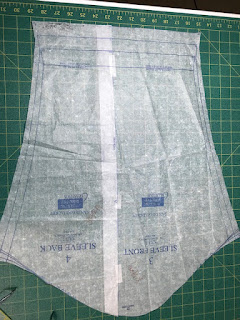

The first step was to convert the original two pieces into a single piece. This was accomplished by overlapping the seams by 1.25" as seen below.

I traced this onto a single piece of tissue and removed all seam and hem allowances. The first step on the tutorial was to fold the single pattern tissue so that the underarm stitching lines met. This was interesting to me because it showed that all sleeve shaping had been shifted into this one seam. You can see that in the gap created when I brought the underarm seam lines together.

Original 1-piece sleeve after seam allowances were removed.
Next I traced lines according to the tutorial to create an under sleeve and an upper sleeve. Below you can see that I've added back the 5/8" seam allowances, as well as hem allowances.
Each says Right Side because I discovered I had created a right upper sleeve and a left lower sleeve.

This version of a two-piece sleeves has one vertical seam that is visible from the front and another that is visible from the back. It creates the effect of an elbow dart and some very subtle shaping.

I tested this by creating a toile for just the sleeve pieces and basting them into the jacket armhole. I was (as usual) short of fabric and could not take a chance on my pattern play failing. But it worked. Hooray! I was still a little short on fabric and so added cuffs to my sleeves.

In fact, I had to further piece one of the sleeves. You can see if you look carefully below that the undersleeve has an extra horizontal seam. I sort of like that it's different from the other sleeve.

The original pattern includes a single back piece cut on the fold. In order to add a bit of upper back shaping, I created a center back seam.

Because this is a light-weight unlined jacket, I sewed flat-felled seams throughout.

Finishing the armscye
I think it might be interesting to make a layering blouse to wear under this. By switching back to the shirt pattern pieces, I think it'll fit nicely under the jacket version. This dark red silk fabric from Laura Murray may be just right.

This was a satisfying experiment. I hope to wade into pattern drafting just a little deeper because this was fun. And honestly I don't need clothes so fast sewing is hard to justify.
